Water electrolysis cell evaluation equipment

PEM water electrolysis cell evaluation equipment
This PEM water electrolysis cell evaluation equipment can be used for water electrolysis cell electrode and separator performance development and durability testing.

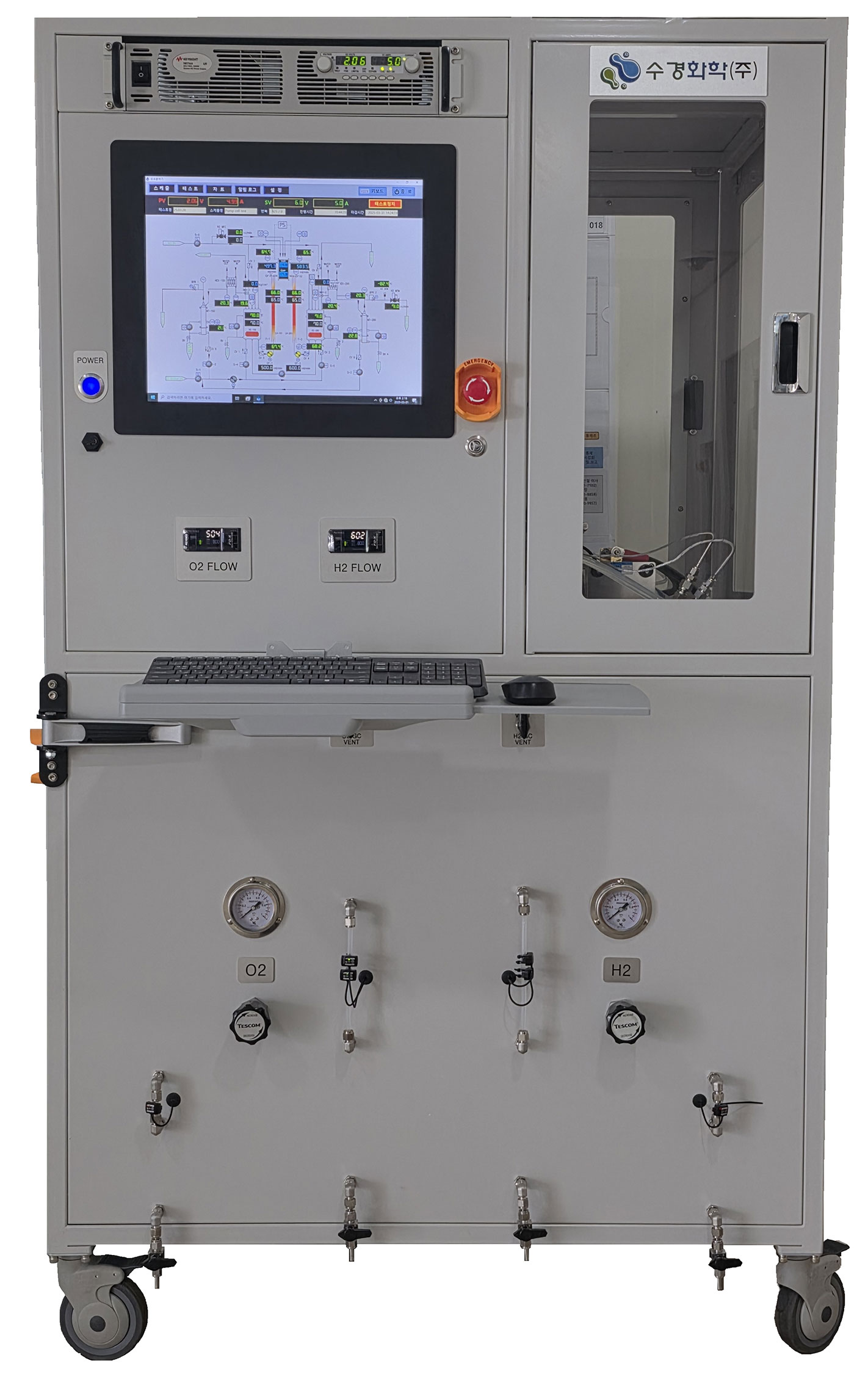

PEM Evaluation equipment
Data
PEMWE
Overall Spec. 1.2kW, 4.5kW, 10kW, 20kW
Hardware Power Supply
Separator
Dryer
Heat exchanger
Pump
Back pressure regulator
Chiller
Detector, Controller Dew point Transmitter
Mass Flow measurement
Mass Flow Controller
O2 Detector
H2 Dectector
Digital Flow meter
Software PLC control
Data logging(graph)
Auto shut-down logic
Characteristic
  • Specifications can be changed according to user request

  • Cell durability evaluation

  • Unmanned driving for long periods of time

Alkaline water electrolysis cell evaluation equipment
This alkaline water electrolysis cell evaluation equipment can be used for water electrolysis cell electrode and separator performance development and durability testing.
AWE Evaluation equipment
Scale up Evaluation equipment
Main
Data
AWE
Overall Spec. 1.2kW, 4.5kW, 10kW, 20kW
Hardware Power Supply
Separator
Dryer
Heat exchanger
Pump
Back pressure regulator
Chiller
Detector, Controller Dew point Transmitter
Mass Flow measurement
Mass Flow Controller
O2 Detector
H2 Dectector
Digital Flow meter
Software PLC control
Data logging(graph)
Auto shut-down logic
Characteristic
  • Specifications can be changed according to user request
  • Cell durability evaluation

  • Unmanned driving for long periods of time


AEM water electrolysis cell evaluation equipment
AEM water electrolysis cell evaluation equipment can be used for water electrolysis cell electrode and separator performance development and durability testing.
AEM evaluation equipment
Scale up Evaluation equipment
Main
Data
AEM
Overall Spec. 1.2kW, 4.5kW, 10kW, 20kW
Hardware Power Supply
Separator
Dryer
Heat exchanger
Pump
Back pressure regulator
Chiller
Detector, Controller Dew point Transmitter
Mass Flow measurement
Mass Flow Controller
O2 Detector
H2 Dectector
Digital Flow meter
Software PLC control
Data logging(graph)
Auto shut-down logic
Characteristic
  • Specifications can be changed according to user request
  • Cell durability evaluation
  • Unmanned driving for long periods of time
LoadCell
This is a cell placement equipment for evaluating water electrolysis cells. It has the advantage of being able to always measure cell efficiency under the same conditions by keeping the pressure applied to the front of the cell constant.

전극면적 ~ 10cm x 10cm
End jig cell Titanium(pt coating)
Peek
Current Collector Copper(gold coating)
Cell Frame SUS316L
Indigator + Loadcell
Characteristic
  • Convenient cell seating and assembly
  • Check cell performance by equalizing the pressure on the cell surface
  • Testing is always possible under the same conditions even when new cells are connected.
  • PEM, Alkaline, AEM all available
  • 10cells stacking possible
